1080P DVI-D Fiber Optic Extender
1080P DVI-D Fiber Optic Extender Overview

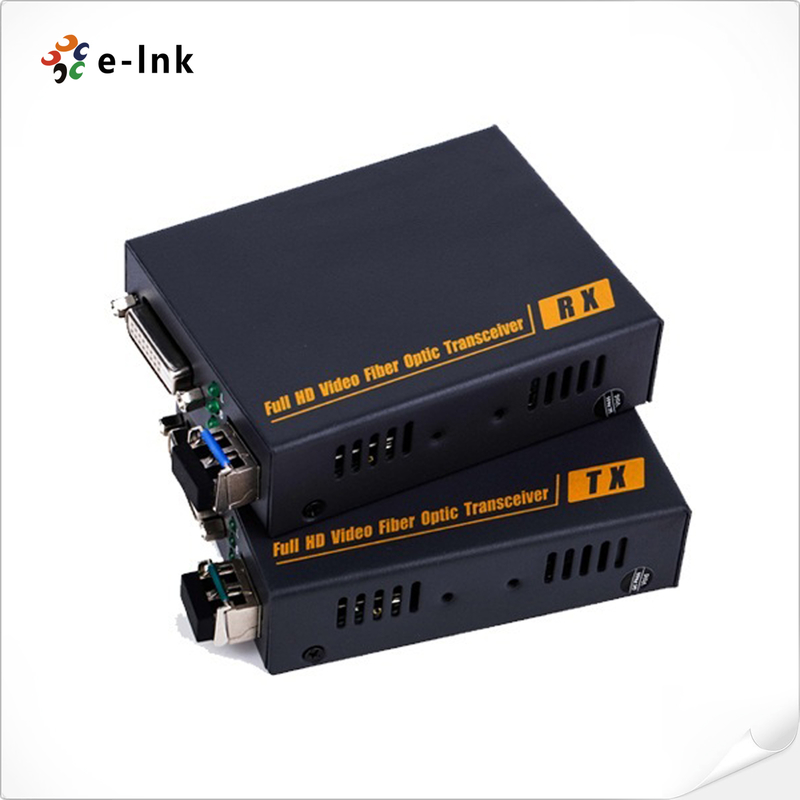

The LNK-DVI-106 fibre optic extender is a high-performance solution for transmitting crystal-clear
digital DVI video signals over long distances. Using a single fibre optic cable, it reliably delivers high-resolution
video of up to 1080p/Full HD quality without any loss. The extender features EDID copy functionality
to ensure seamless compatibility between your video source and display. Designed for professional and
demanding environments, it provides exceptional stability and the robust data security inherent
in fibre optics, as well as immunity to electromagnetic interference. Its versatility makes it the ideal choice
for control rooms, digital signage, medical imaging and conference halls, where secure, long-distance,
high-definition video transmission is essential.
1080P DVI-D Fiber Optic Extender Features
► Transmits DVI video signals up to 2km–10km over a single fiber optic cable
► Supports resolutions up to 1920×1200 @ 60Hz for high-quality video output
► EDID copy function ensures compatibility with a wide range of display devices
► Fully compliant with DVI 1.0 and HDCP 1.2 standards
► Auto-detection for seamless matching between source and display devices
► Built-in automatic adjustment system delivers smooth, clear, and stable images
► Integrated ESD protection for enhanced system reliability
► Plug-and-play design for quick and simple installation
1080P DVI-D Fiber Optic Extender Technical Indexes
|
Parameter
|
Description
|
|
Video
|
Standards
|
DVI 1.0; HDCP 1.2
|
|
|
Maximum pixel clock
|
165MHz
|
|
|
Maximum data rate
|
6.75Gbps
|
|
|
Resolution range
|
Up to 1920X1200@60Hz
|
|
|
Connector
|
DVI-D
|
|
|
Impedance
|
100Ω
|
|
Optical fiber
|
Interface
|
SFP model – LC connector
|
|
|
Fiber type
|
Single-mode
|
|
|
Wavelength
|
Single-mode 1310nm(optional)
|
|
|
Interface bandwidth
|
10Gbps
|
|
|
Transmission distance
|
Single-mode fiber: standard 2km；maximum 10km
|
|
Other
|
Power supply
|
The power adapter: DC 5V/2A
|
|
|
Power dissipation
|
MAX 5W
|
|
|
Temperature
|
Operating: -5℃ ~ +70℃
|
|
|
Humidity
|
Operating: 5% ~ 90%
|
|
|
Dimension
|
94.5*73*26mm
|
|
|
The warranty
|
1 year free warranty
|
1080P DVI-D Fiber Optic Extender Interfaces
1080P DVI-D Fiber Optic Extender Ordering Information
|
Model
|
Description
|
|
LNK-DVI-106
|
DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Multi-mode Fiber, 350 meters, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
|
|
LNK-DVI-S106-10
|
DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Single Mode, Single Fiber, 10KM, LC(SFP), including 1 Transmitter & 1 Receiver, used by pairs
|
1080P DVI-D Fiber Optic Extender Application
