16Ch POTS(FXO/FXS)Telephone over Fiber Mux

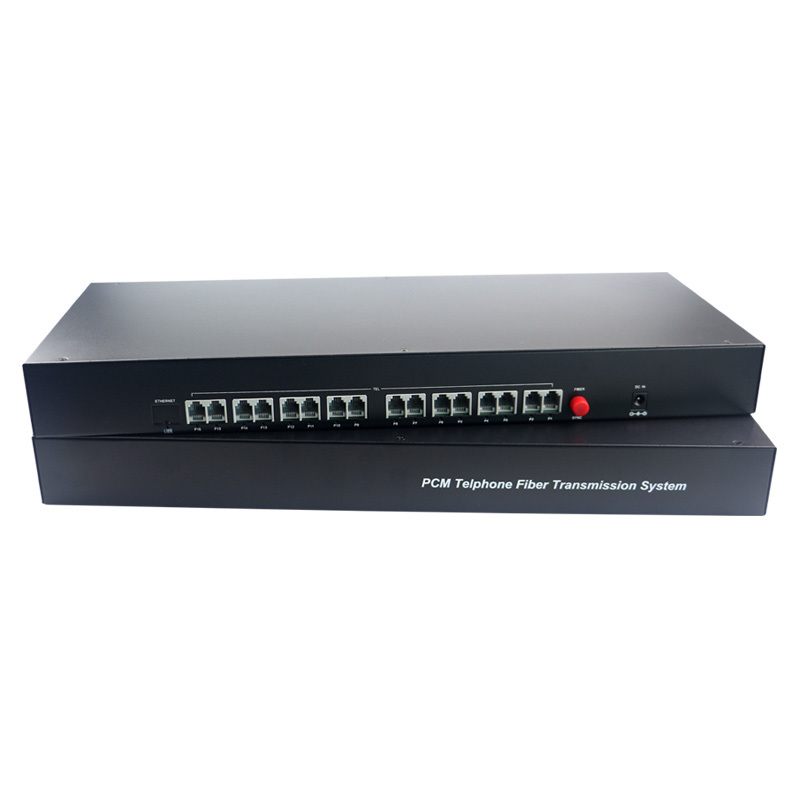

16Ch POTS Telephone over Fiber Overview
The E-Link 16-Channel POTS over Fibre Converter is the ultimate high-density solution
for transmitting sixteen traditional telephone lines over a single optical fibre strand. This enterprise-grade
Voice over Fibre system maximises telecommunications efficiency while dramatically reducing
cabling infrastructure and costs. It uses standard RJ-11 connectors to integrate seamlessly
with existing copper pair wiring systems. The platform operates through matched FXO and FXS units:
the FXO interface connects directly to central office (PSTN) or PBX trunk lines and has complete ringing
voltage detection capability, while the reciprocal FXS unit connects to end-user telephone devices
and provides full dial tone and calling functionality. Designed for carrier-grade voice clarity
and complete immunity to electromagnetic interference, this robust extender is ideal for large-scale
voice service deployment in telecommunications central offices, multi-building corporate campuses,
hospital networks, government facilities and secure industrial complexes.
16Ch POTS Telephone over Fiber Features
- Standard RJ11 telephone interface for seamless connectivity
- 16 voice channels with support for Caller ID and Fax functions
- Dual voice port design (O port & S port):
- O port connects to the switch
- S port connects to the user’s telephone
- Compatible with FXO/FXS standard telephones
- Supports point-to-point, cascaded, and distributed networking without SNR degradation
- Fiber optic power link with LED indicators for system status monitoring
- Industrial-grade modular design provides flexible deployment, high reliability, and long-term durability
16Ch POTS Telephone over Fiber Technical Indexes
|
Product Name
|
16 channel telephone over fiber converter
|
|
Product Model
|
LNK-PCM16 Series
|
|
Description
|
FXO/FXS Ordinary telephone
|
|
Telephone Ports
|
16 telephone port RJ11 port
|
|
Switch Terminal
|
Ordinary telephone or PBX, PBX (PBX),
public telephone outside the PSTN
|
|
FXS
|
Ringing voltage: 75V, ringing frequency: 25HZ
|
|
FXO
|
Second line input impedance:600Ω (hook),
return loss: 40db,
ring detection voltage:35V
|
|
Ring detection frequency
|
17HZ-60HZ,
second-line input impedance: 600Ω(hook),
return loss: 40 db
|
|
Broadband Voice
|
8KHZ
|
|
Connection
|
Point to point,
telephone to telephone,
telephone to switch
|
|
Code
|
PCM code
|
|
Fiber Ports
|
FC/UPC
|
|
Ethernet Ports (optional)
|
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
|
|
Transmission distance
|
Single-mode single fiber 20KM
|
|
Environmental Specifications
|
Operating Temperature: -35°～ 75°C
|
|
Storage Temperature: -40°～ 85°C
|
|
Operating Humidity: 0%～95%, non-condensing
|
|
Total power consumption
|
2.5w(Input:DC12V 3A)
|
|
Power supply
|
External power supply,
Input:AC110-160V 50/60Hz,
Output:12V 3A
|
16Ch POTS Telephone over Fiber Ordering Information
|
Model
|
Description
|
|
LNK-PCM16
|
Analog Telephone to F/O Converter: 16-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
|
LNK-PCM16-E
|
Analog Telephone to F/O Converter: 16-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
16Ch POTS Telephone over Fiber Application
