Multimode Fiber 4K HDMI Extender 300m Uncompressed Video Conference Solution

Mini 4K HDMI Optical Transceiver

Mini 4K HDMI Optical Transceiver Overview

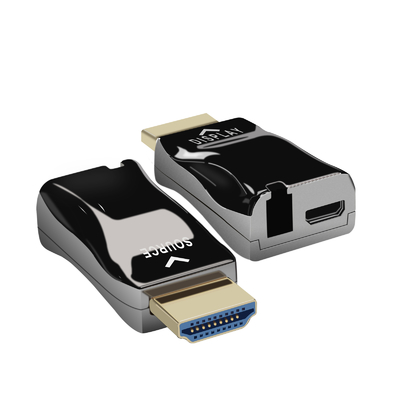

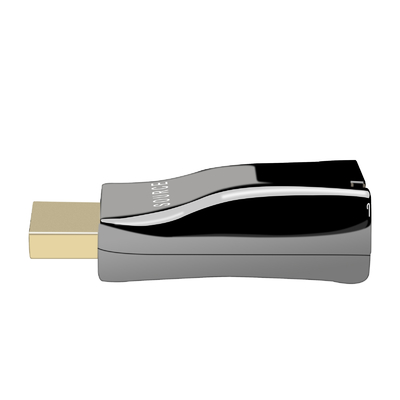

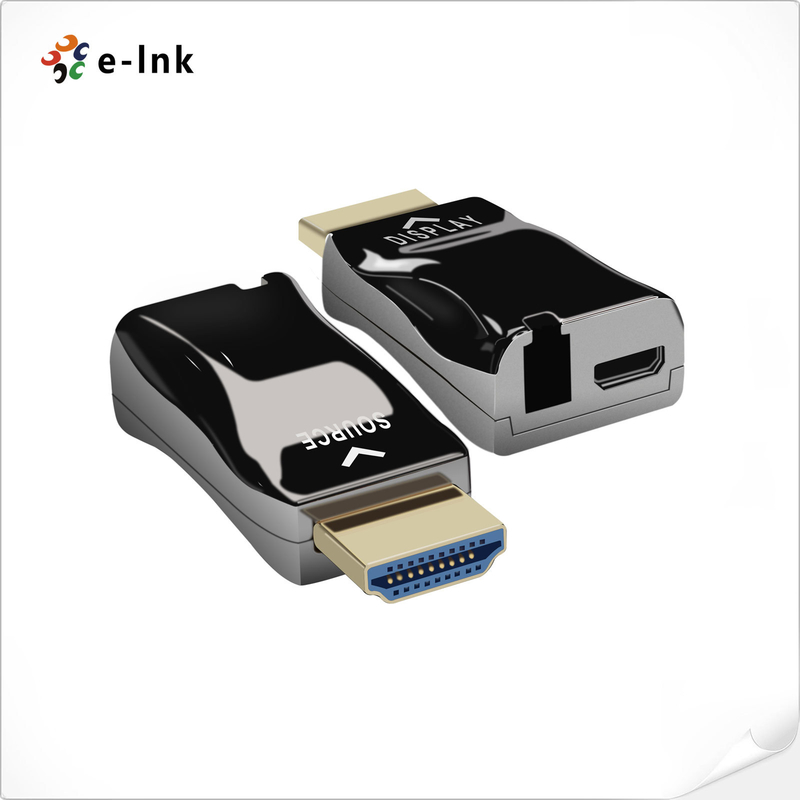

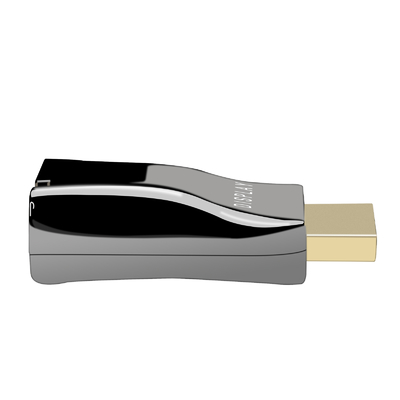

The LNK-107M is a compact, plug-and-play 4K/30Hz HDMI fibre extender using single-core

multimode fibre. It delivers uncompressed 4K video up to 300 metres (984 feet) with zero latency.

Its all-fibre design eliminates EMI/RFI interference to ensure crystal-clear signal integrity

for large-screen displays, conference rooms and home cinemas. This ultra-compact extender set (Tx+Rx),

which is compliant with HDMI 1.4 and RoHS, converts signals to 10Gbps optical data, making it perfect for

interference-free 4K AV distribution.

Mini 4K HDMI Optical Transceiver Features

• Supports HDMI video up to 4K@30Hz resolution

• Plug-and-play design with no settings or adjustments required

• Utilizes WDM technology to transmit high-definition audio and video over a single OM3 multimode optical fiber

• Supports transmission distances up to 300 m with OM3 multimode fiber

• Equipped with standard HDMI 1.4 connector for wide compatibility

• Integrated USB connector for power supply

• Low power consumption — only the RX module (display side) requires external power

• Hot-pluggable for easy installation and replacement

• TMDS signal transmission via multimode optical fiber ensures excellent anti-interference performance

• Uses compact, reliable LC optical connector

Mini 4K HDMI Optical Transceiver Technical Indexes

Mini 4K HDMI Optical Transceiver Ordering Information

Mini 4K HDMI Optical Transceiver Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing

product consultation, remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly go to

the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
