Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SC Ethernet Switch with 12~48VDC Input and Voltage Booster
Mini Industrial Solar Power PoE Switch Overview

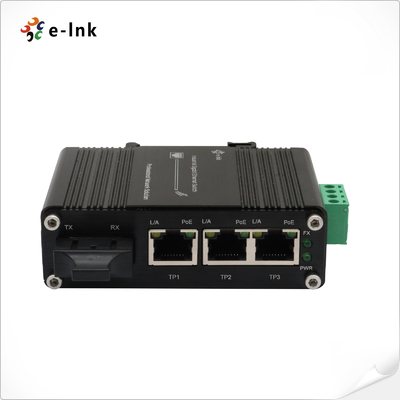

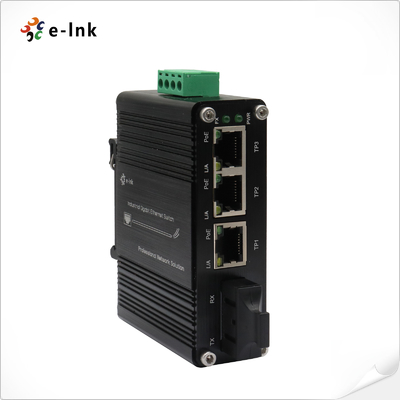

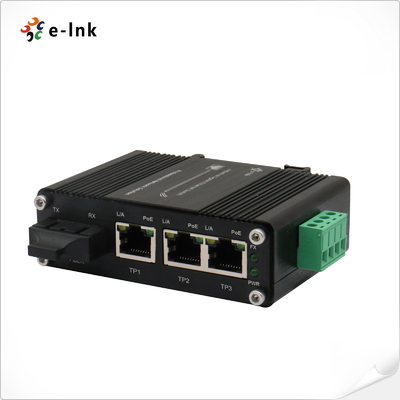

The LNK-IMC103GP Series is a compact, industrial-grade 4-port Gigabit Power over Ethernet switch
featuring 3 x 10/100/1000BASE-T Power over Ethernet ports (802.3at, 30W each)
and 1 x 1000BASE-X single-mode fibre port. Engineered for challenging environments,
it offers wide voltage input (12-48VDC) with voltage booster, making it ideal for solar power systems,
industrial automation, and outdoor applications. The durable IP40 aluminium housing offers
exceptional resilience against extreme temperatures (-40°C to 75°C), vibrations, and shocks,
while adhering to CE/FCC standards. With a 90W total PoE budget, plug-and-play functionality,
and 100% burn-in testing, it delivers reliable, cost-effective industrial-strength networking for demanding environments.
Mini Industrial Solar Power PoE Switch Features
LNK-IMC103GP-SFP present the following features:
► 3 x 10/100/1000BASE-T RJ45 ports (ports 1-3 support IEEE 802.3at PoE+ power supply, automatic MDI/MDI-X switching)
► 1×1000Base-X SC optical port , suitable for high-speed optical fiber transmission
► Wide range 12~48VDC power input , built-in power boost function
► PoE power budget : 90W (48VDC), 90W (24VDC), 60W (12VDC)
► Full/half duplex self-adaptation , support automatic negotiation, and ensure efficient transmission
► Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to reduce power consumption
► IP40 aluminum alloy housing , durable and strong anti-interference performance

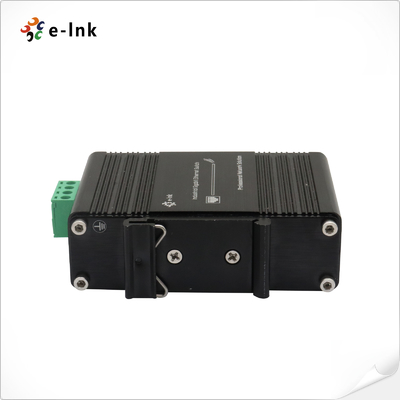

► Supports DIN rail and wall mounting for flexible deployment
► Industrial grade wide temperature design -40°C to 75°C, suitable for harsh environments
Mini Industrial Solar Power PoE Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
4 Mbit
|
|
Switch Fabric:
|
12Gbps
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)
|
|
Optical Port:
|
1 x SC 1000Base-X
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3af Power over Ethernet
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
PoE Budget:
|
Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 2-pin terminal block
|
|
Power Consumption:
|
<95W (Non-PoE<6W)
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Ethernet LINK Status
|
|
FX:
|
Fiber LINK Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.3Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial Solar Power PoE Switch Ordering Information
|
Model
|
Description
|
|
LNK-IMC103GP
|
Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m
|
|
LNK-IMC103GP-20
|
Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km
|
|
LNK-IMC103GPS-20A
|
Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km
|
|
LNK-IMC103GPS-20B
|
Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 12~48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
Mini Industrial Solar Power PoE Switch Application
